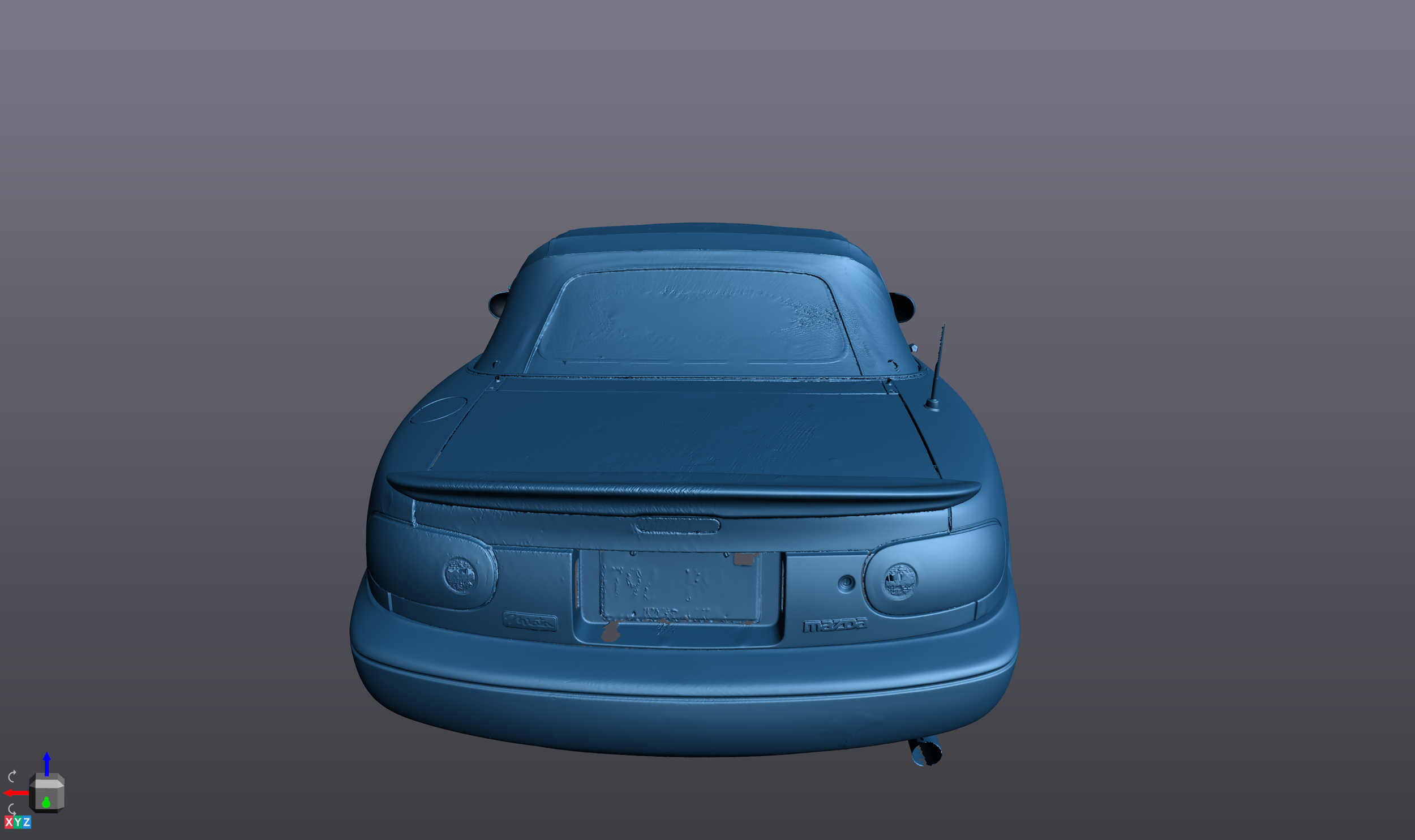

1995 Mazda Miata MX5 NA Laser Scan Point Cloud 3D Scan
This is a raw, cleaned laser scan. Data collected with a Handyscan Black Elite from Creaform. This data is NOT water tight, and it is NOT 3D PRINTABLE, it is suitable for design and reverse engineering only. Please view all angles of the data, as all sales are final on downloads. If you have any questions, or require additional detail of this particular vehicle, please head over to the contact me section on the website. The wheels are scanned completely, for people concepting drivetrain swaps. The underside and interior are not scanned. If you or someone you know has access to a bare chassis, please let me know! Origin of this model is placed centered, coaxial to the front wheels, parallel to the ground.

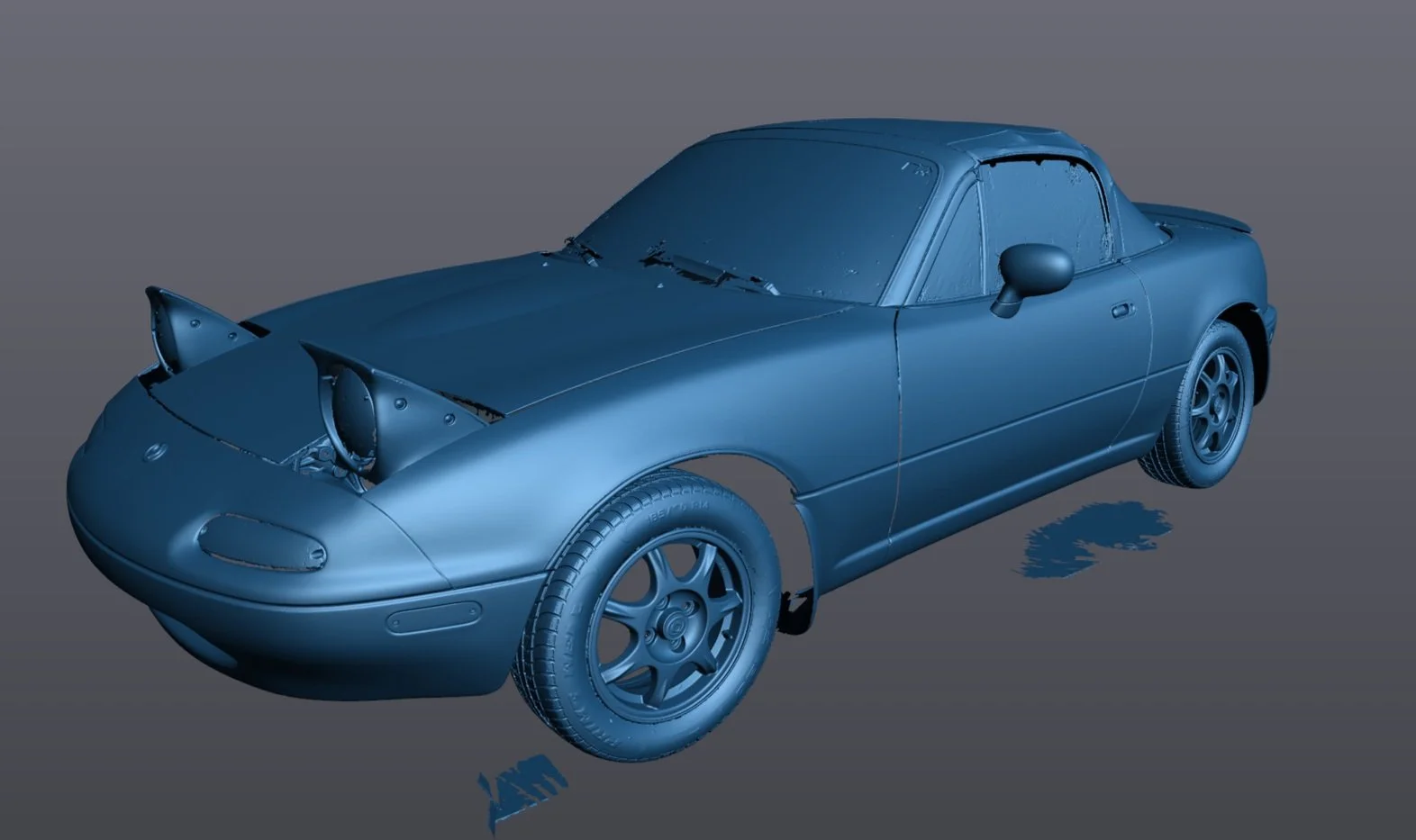

Headlights are scanned up and down, top is scanned up and down. Over 2500 targets were applied for this scan.
A 3 million poly is provided for instant download. I can also provide a further decimated version of this file or the full resolution (~ 13 million poly). Decimation or full resolution provided AFTER purchase at no additional charge. Can provide poly line fits, cross sections, or anything else you might need at additional charge per hour (I can do a lot in an hour). Let me know what you need, and I can extract it if you don’t know how!
Personal use only, not for resale. Copyright Schimmel Engineering.
