Complete precision scan dataset for the Harbor Freight Apache 5800 protective case, captured with the Creaform HandyScan BLACK Elite — a professional-grade, NIST-traceable portable CMM scanner delivering ±0.025 mm (0.001 in) volumetric accuracy at up to 480,000 measurements per second. This is not a photogrammetry estimate or hand-measured approximation. Every surface is real, verified scan data.
What's Included:
Coordinate System:
All files are oriented to a common world space origin at the geometric center of the case interior, with the XY plane coincident with the bottom interior face — ready to drop into your CAD assembly with no repositioning required.
Ideal For:
Custom foam insert design, 3D-printed organizers and trays, pick-and-pull foam cutting templates, aftermarket accessory development, enclosure fitment verification, and product design reference.

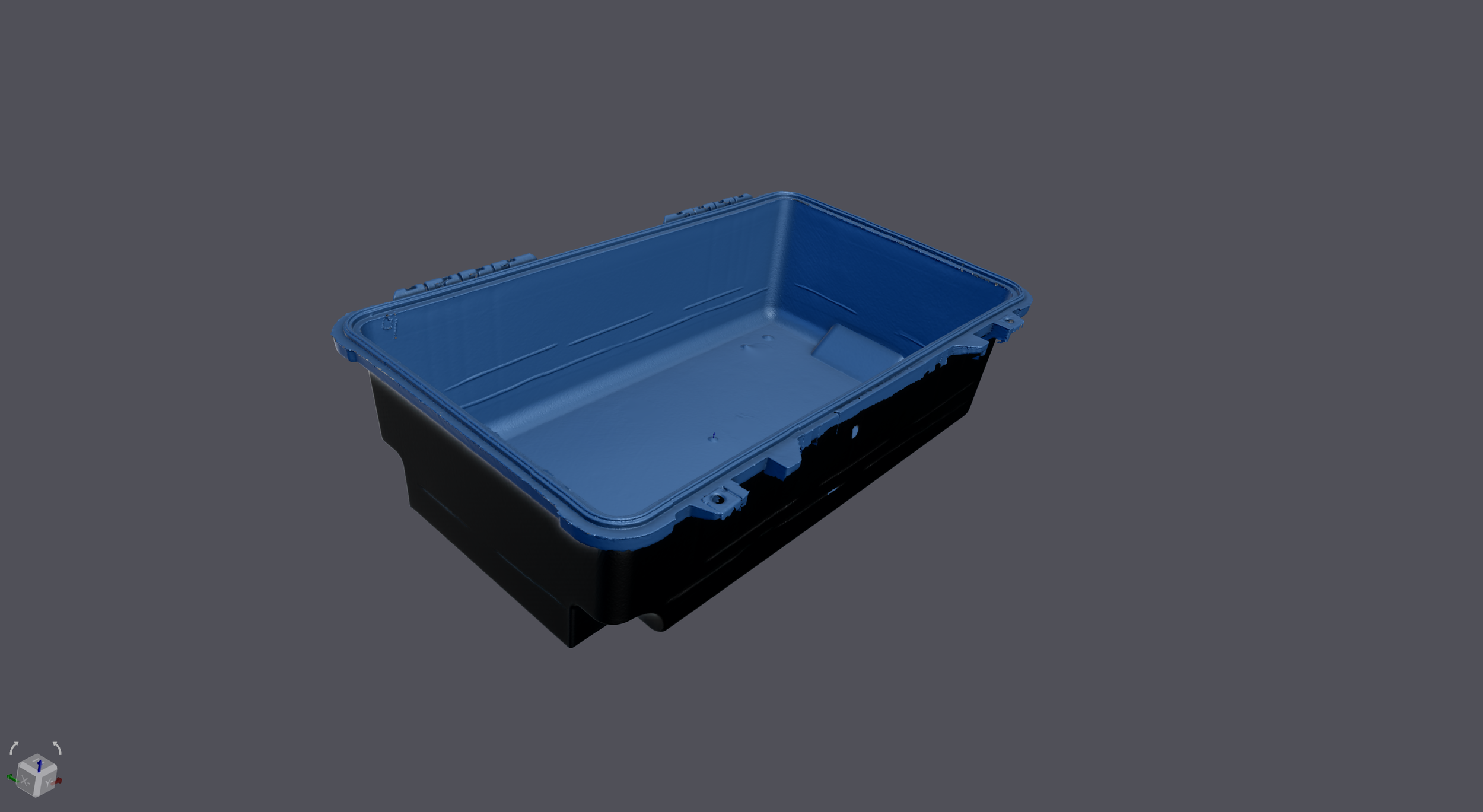

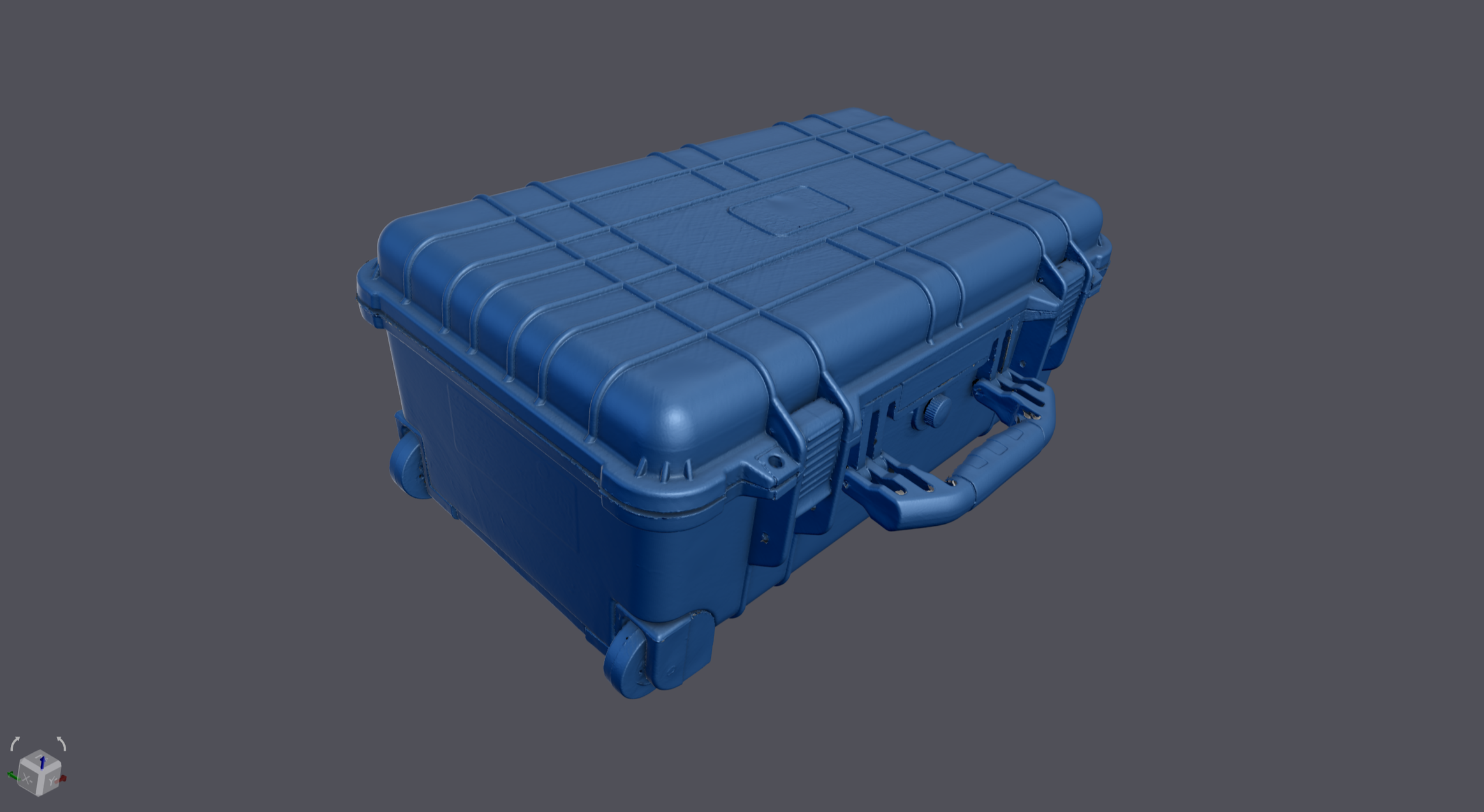

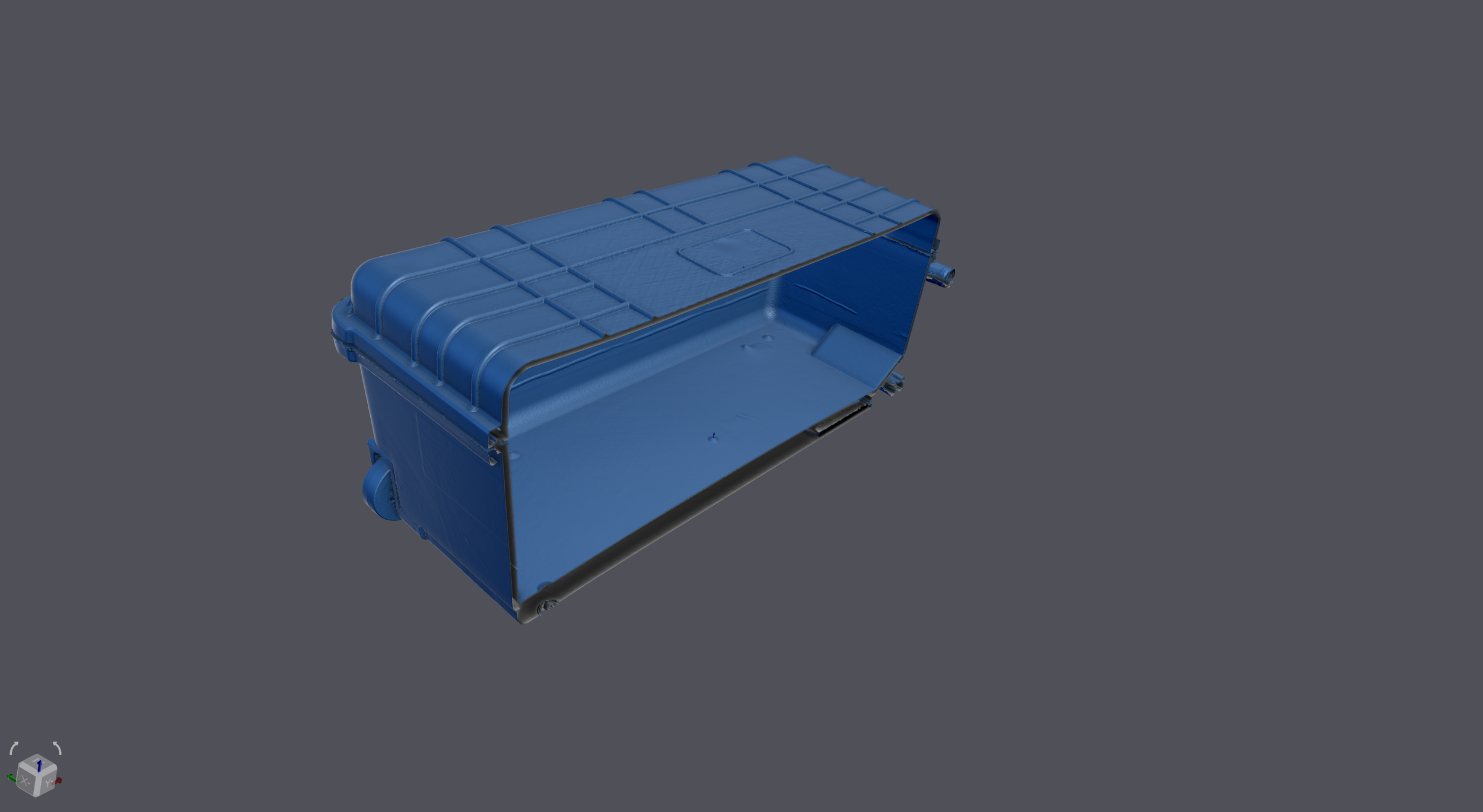

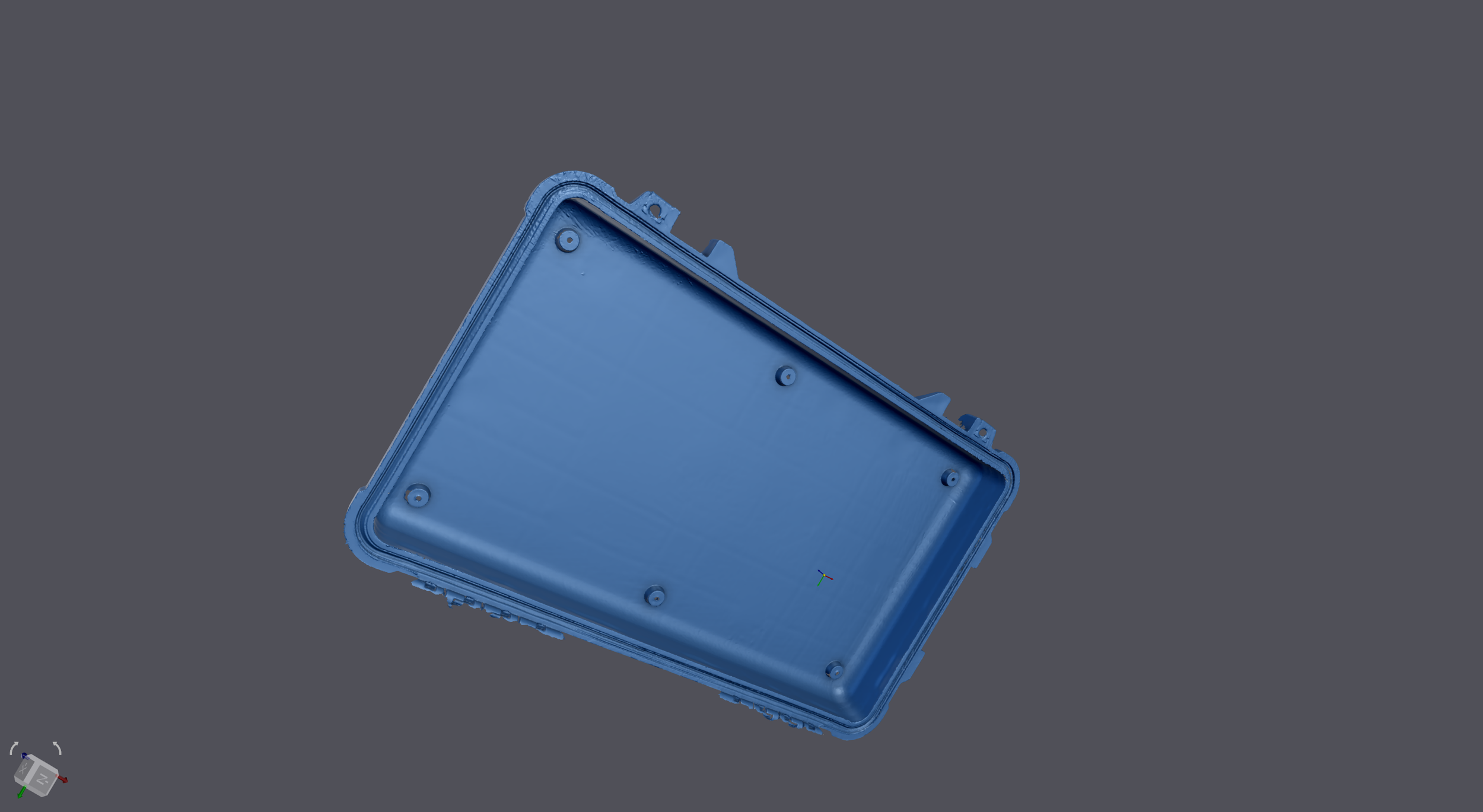

File Format: 4 x STL (mesh, 500mb total) @ 1mm resolution
Scanner: Creaform HandyScan BLACK Elite | ±0.025 mm volumetric accuracy | NIST-traceable
Software: Creaform OS2.2
