Tesla iBooster Scan Data 1044671-99-F 104467199F

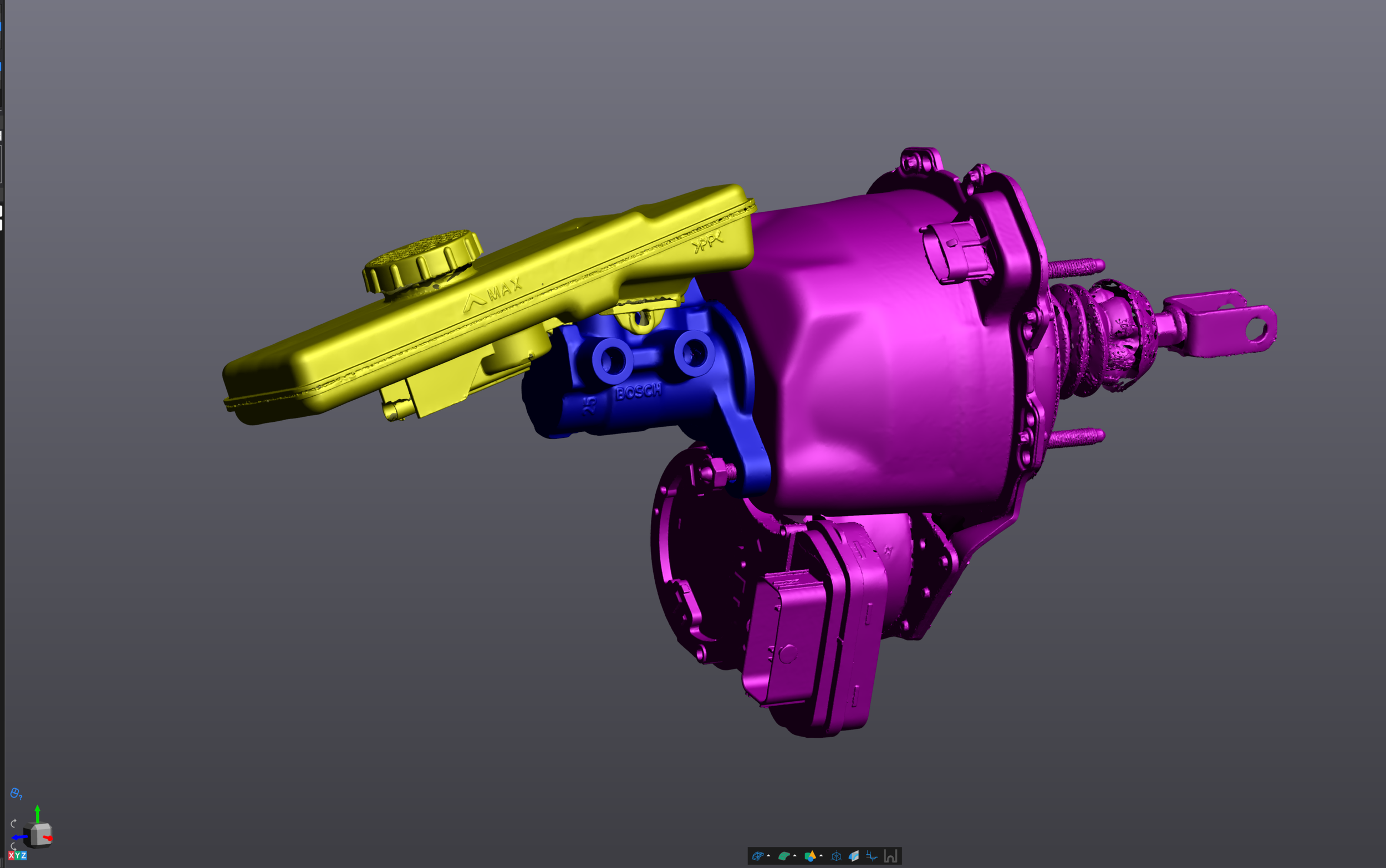

Tesla iBooster Scan Data. Reservoir, master cylinder and booster all scanned as separate files. MESH ONLY. Oriented and roughly cleaned. Due to internal geometry, parts are not “watertight”. Line of sight scan only. Internals are not scanned/reverse engineered.

Please note, if you’re looking to make a traditional reservoir for this master cylinder combo, we already have a solution for that! Click the URL to see the billet master reservoir we distribute for Gen 2 boosters.

I have a nurbs version of these models available also for use in Solidworks, Inventor, Onshape, etc. Please check my other scan data listings. Perfect jumping off point for your iBooster conversion.

Data was captured with a Handy Scan Black Elite. CSF file available for Creaform users. By checking out, you will receive a secure link to the file lasting 24 hours after the first download.

This scan is from a Tesla gen 2 booster, but will have similar geometry to the following models:

1. Honda Accord

2. Tesla Model 3

3. Tesla Model Y

4. Renault Zoe (2018+)

5. Renault Captur hybrid (2020)

6. Renault Clio V hybrid

7. Citroën DS 7 Crossback

8. Peugeot 3008 II

9. Volkswagen Caddy Cargo V

10. Porsche Taycan

11. Toyota Yaris IV hybrid
